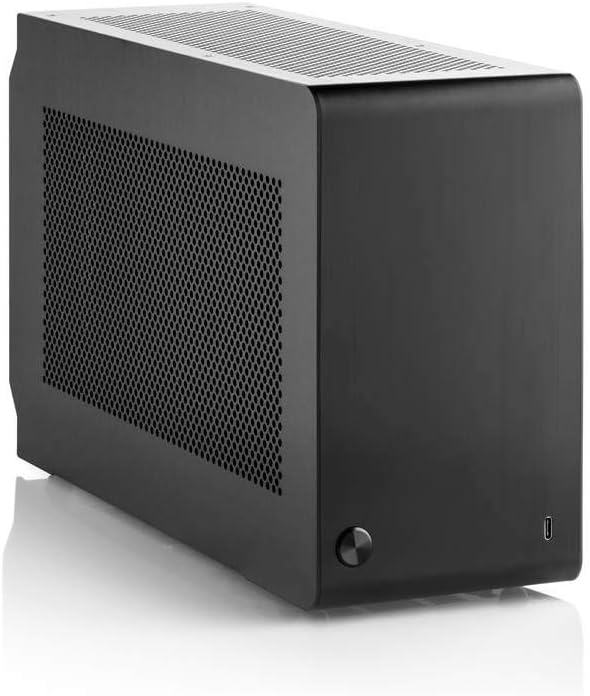

DAN Cases A4-SFX V4.1 Mini-ITX Kasa - Siyah

DAN Cases A4-SFX V4.1 Mini-ITX Kasa - Siyah

Kutusunda, eksiksiz.

Sff kasaların mihenk taşlarından diyebiliriz.

Nette çok fazla inceleme ve sistem kurma videoları mevcut.

Kontrol etmek amaçlı kutusundan çıkarılır, sistem kurulmadı.

İhtiyaçtan satılık değil, o yüzden indirim veya takas yapılmayacaktır.

İstanbul Sarıyer’de elden teslim.

---------------------------------------------------------------------------------------------------------

Technical Details:

Dimensions: 115 x 205 x 327 mm (W x H x D - with feet and overhang)

Dimensions: 112 x 200 x 317 mm (W x H x D - Chassis only)

Material: Aluminium (anodized, brushed)

Material thickness: 1.5 mm

Weight: 1.25 kg

Volume: 7.25 l

Colour: Black

Form factor: Mini-ITX

Fans possible in total:

1x 92mm fan

1x 92mm fan instead of one drive

Radiators possible:

1x 92 mm (bottom)1x 120 mm (laterally/vertical behind the power supply)

Drive bays:

2x 2.5 inch (drive frame, max. 15 mm height, only 1x possible with SFX-L power supply)

1x 2.5 inch (behind the front, max. 9 mm height)

Power supply unit: SFX or SFX-L (optional)

Expansion slots: 2 (Dual slot)

I/O Panel:

1x USB 3.1 (USB 3.2 Gen1) Type C (internal connection)

Special feature: 3M PCIe 4.0 riser module for GPU mounting (180 mm)

Maximum CPU cooler height: 48 mm

Maximum graphics card length: 295 / 306 mm (without/incl. slot bracket)

Maximum graphics card height: 144 mm (from the bottom of the PCIe slot)

Maximum graphics card width: 40 / 45 mm (without/with backplate)

Maximum memory module height: 52 mm

Maximum power supply length: 130 mm

---------------------------------------------------------------------------------------------------------

Sistem Notu : Bu ilan her türlü yoruma açıktır.
