Intel NUC10i5FNH i5-10210U (6M Cache, up to 4.20GHz)

Intel NUC10I5FNH Mini PC NUC Tall Kit

Intel® Core™ i5-10210U (6M Cache, up to 4.20GHz)

8GB SODIMM DDR4-2666 (up to 64GB),

256Gb M.2 SATA SSD, 1 x 2.5in HDD ,

Sıfıra Yakın bir cihaz.

• SPECIFICATION ModelBXNUC10I5FNHProcessorA soldered-down 10th generation Intel Core i5-10210U Quad-Core Processor with a maximum 25W TDP, 1.6GHz base , 4.2GHz Turbo, 8Threads
• Intel UHD Graphic
• 6MB Intel Smart Cache
• Integrated memory controller
• Intergrated PCH
• Memory Two 260-pin DDR4 SDRAM Small Outline Dual Inline Memory Module (SO-DIMM) sockets
• Support for DDR4 2666 MHz SO-DIMMs
• Support for 8Gb and 16 Gb memory technology
• Support for up to 64 GB of system memory with two SO-DIMMs using 16GB memory technology
• Support for non-ECC memory
• Support for 1.2 V low voltage JEDEC memory only
• Note: 2Gb and 4Gb memory technology (SDRAM Density) is not compatibleGraphicsIntegrated graphics support for processors with Intel® Graphics Technology

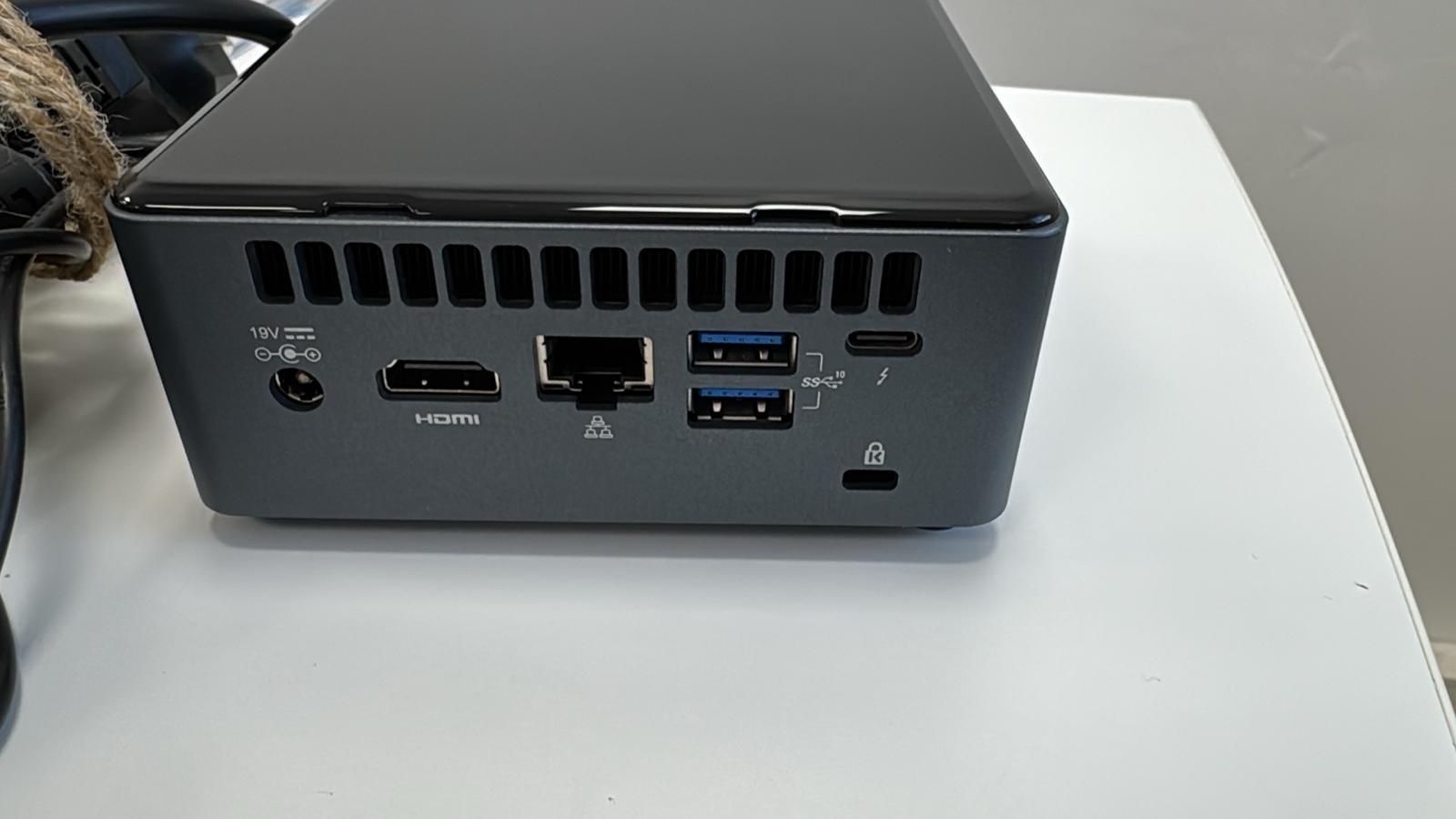

• One High Definition Multimedia Interface* (HDMI*) v2.0b Back panel connectors
• One DisplayPort signal via USB Type C back panel connector
• AudioIntel High Definition (Intel HD) Audio via the HDMI and USB Type C interfaces through the processor
• Realtek HD Audio via a stereo microphone/headphone 3.5mm jack on the front panel
• Digital microphone array (DMICS) connector (Internal)
• StorageSATA Port: One SATA 6.0Gbps port (black) for 2.5" storage device
• One SATA 6.0Gbps port is reserved for an M.2 stroage module supporting M.2 2242 and M.2 2280 (Key typeM) modules
• Note: Supports key type M (PCI Express* x4 and SATA)Peripheral InterfacesUSB 3.1 (Gen2/10 Gbps) Type C ports:

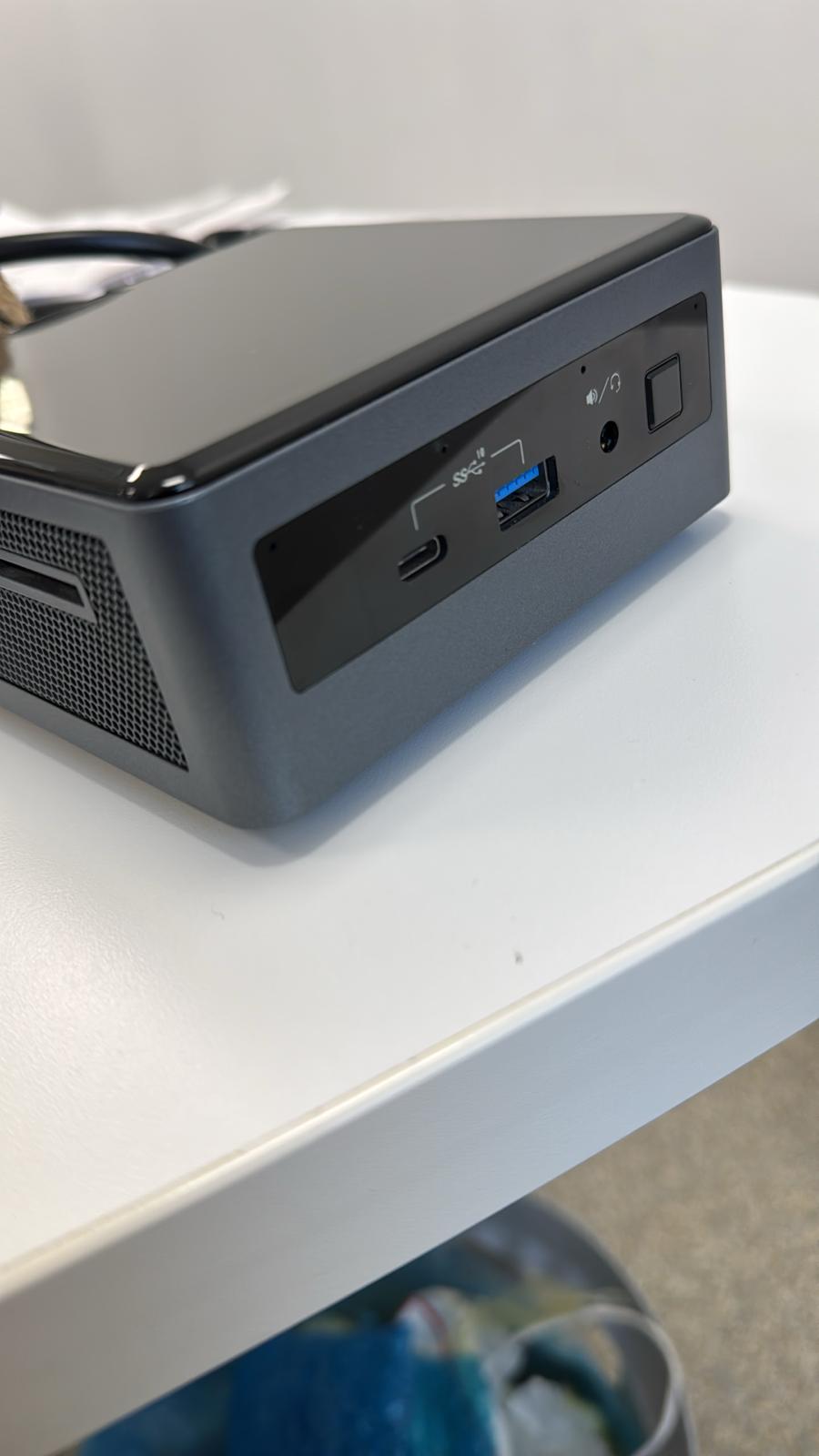

• One port is implemented via the external front panel Type C connector
• One port is implemented via the external back panel Type C connector
• USB 3.1 (Gen2/10 Gbps) Type A ports:
• One port is implemented via external front panel connectors (blue)
• Two ports are implemented via external back panel connectors (blue)
• USB 2.0 ports:
• Two ports via two single-port internal 1x4 1.25mm pitch headers (white)
• One port is reserved foe the NGFF 1216 Wireless module Bluetooth capability
• Consumer Infrared (CIR)
• Expansion CapabilitiesOne M.2 connectors supporting M.2 2242 and M.2 2280 (key type M) modules

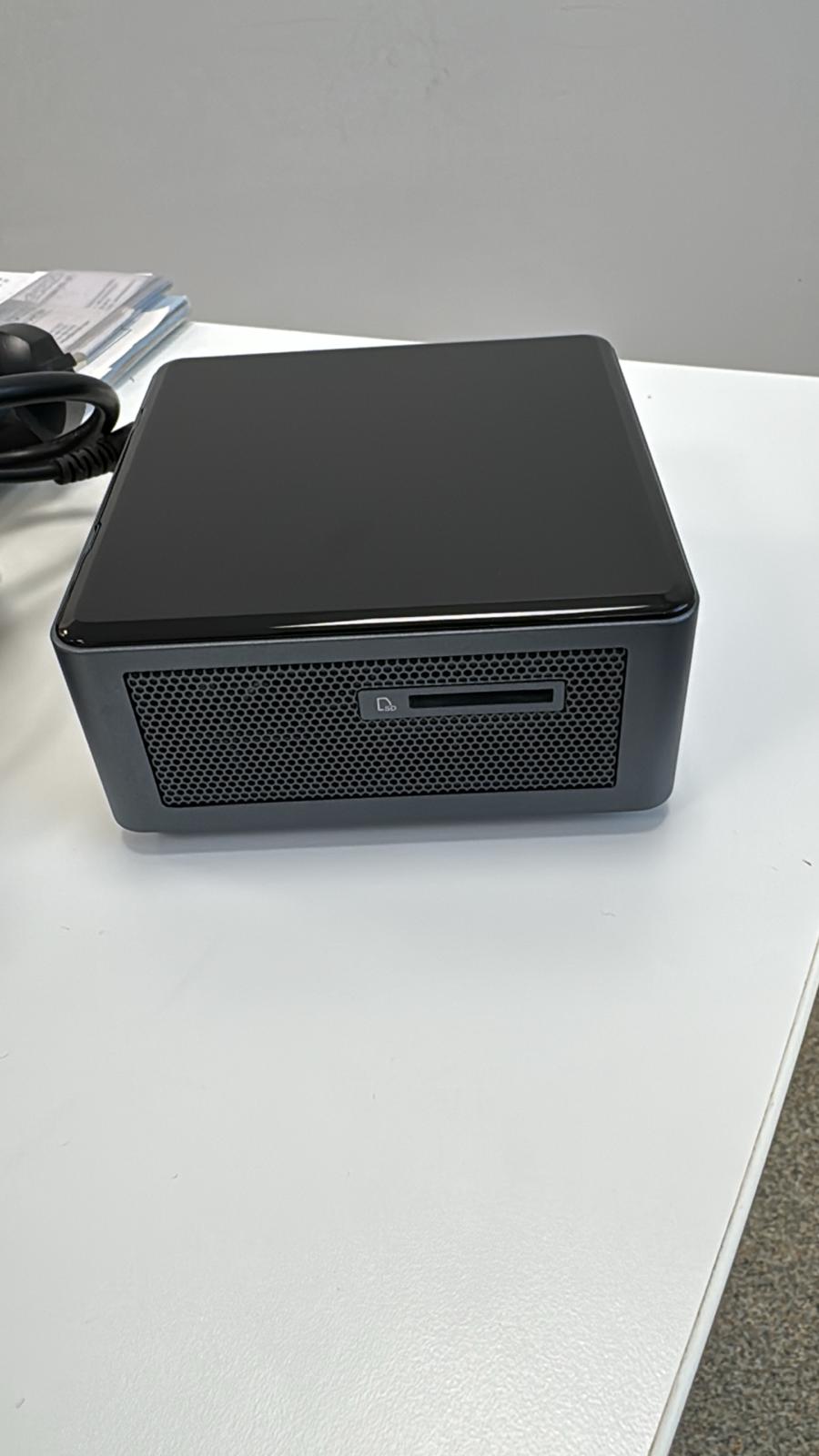

• One Micro SDXC slot
• One Thunderbolt 3 via back panel USB Type C connector
• BIOSIntel® BIOS resident in the Serial Peripheral Interface (SPI) Flash device
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS), and Modern Standby
• Instantly Available PC TechnologySuspend to RAM support
• Wake on PCI Express, LAN, front panel, CIR, and USB ports
• LAN Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® I219V Gigabit Ethernet Controller

Hardware Monitor SubsystemHardware monitoring subsystem, based on an embedded controller including:

• Voltage sense to detect out of range power supply voltages
• Thermal sense to detect out of range thermal values
• One processor fan header
• Fan sense input used to monitor fan activity
• Fan speed control
• WirelessIntel Wi-Fi 6 AX201,802.11ac, Dual Band, 2x2 Wi-Fi + Bluetooth 5
• Maximum Transfer speed up to 2.4 Gbps
• Next Generation Form Factor (NGFF) 12x16 soldered-down package
• Support OFDMA, 1024QAM, Target Wake Time (TWT) and spatial reuse

From FactorUCFF (4" x 4")

Sistem Notu : Bu ilan her türlü yoruma açıktır.
