23.01.2008 Dfs Bilgisayar faturalı ve kutulu takas yoktur...

350 YTL.

Specification

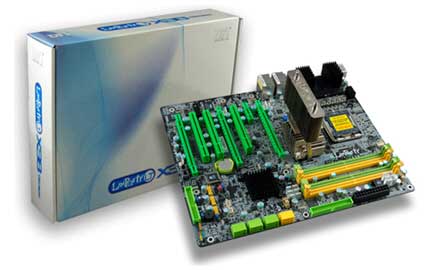

DFI LanParty LT X38-T2R Motherboard

Model
DFI LanParty LT X38-T2R Motherboard

Socket
Socket 775 Motherboard

CPU
Socket-775 for Intel Core TM2 Quad, Core TM 2 Duo, Core TM2 Extreme
Socket-775 for Intel Pentium® D
8 Phase digital PWM

Chipset
INTEL® X38+ICH9R

Memory
128-bit Dual-channel memory architecture
4 240-pin DDRII DIMM sockets max 8GB
Supports unbuffered, single/double-side DDRII 533/667/800 DIMMs
Supports x8/x16, non-ECC and up to 1Gb DDRII devices

FSB
Hyper Transport 3.0 and 1.0

BIOS
8 Mb flash ROM
CMOS Reloaded
ACPI; PnP; Hotkey flash; Wake on Ring/LAN/USB/Keyboard and Mouse

Audio
Realtek ALC885 for 8CH HD audio in Bernstein card
BERNSTEIN Audio Module
Realtek ALC885 for 8CH HD audio CODEC
6 audio jacks; CD-In connector; front audio connector, optical S/PDIF connector,
coaxial RCA S/PDIF-in/out jacks

USB
12 USB2.0 ports

Firewire IEEE 1394
VT6307 with 2 IEEE1394 ports

Manageability
DMI 2.0, WOL by PME; WOR by PME; PXE2 Boot
Excellent Over-clocking Capability
Voltage tuning ,Vdimm , Vnb , Vcore,Vsb,VHT
1MHz frequency subtle tuning,Fsb
Adjustable CPU Multiplier
EMI Regulations
FCC Class B, CE
Excellent Over-clocking Capability
Voltage tuning ,Vdimm , Vnb , Vcore,Vsb,VHT
1MHz frequency subtle tuning,Fsb
Adjustable CPU Multiplier

Features
Dual GbE LAN with teaming
Teaming allows dual LAN to work together to provide up to twice the Ethernet
bandwidth for transferring large amounts of data from home file servers to other
PCs. It also provides network redundancy through fail-over capability.

Special feature
Digital PWM provides stable voltage to the CPU and avoids damage to capacitors

EZ-CLEAR
Bypass the manual process by simply pressing the rest and power buttons at the
same time. The CMOS will restore the clock settings back to their default values.

LAN
2 GbE LAN by Marvell 88E8052+8053 with teaming
Expansion Slots
2 PCI Express (Gen 2) x16
1 PCI Express x4 Graphic Slot with Crossfire and Physical
1 PCI Express x1
3 PCI

Storage
1 Floppy port
1 parallel IDE ports with up to 133Mbps UltraDMA
8 serial SATAII ports with up to 3Gbs
Support INTEL SATAII with RAID 0/1/0+1/5
JMB 363 supports 2 SATAII ports and 1 IDE port with RAID 0/1
Legacy IO
IT8716F-S

Hardware Monitoring:
CPU/System temperature sensing w/ overheating alarm CPU
overheating protection during system boot-up
12v/5v/3.3v/Vcore/Vdimm/Vnb/Vbat/5Vsb voltages sensing
Current drive CPU temperature sensing
3 Fan speed sensing and 1 Linear fan speed control for CPU fan

Back panel IO
1 x PS2 mouse, 1 x PS2 keyboard
2 USB2.0 ports, 1 x IEEE-1394
2 USB2.0 ports, 1 x RJ45
2 USB2.0 ports, 1 x RJ45
Other Onboard Connectors
3 USB header for 6 USB2.0 ports
1 2x5-pin header for IEEE-1394 port
1 2x6 connector for Bernstein audio module
1 5x2-pin for IRDA header
1 4x1-pin FAN connector for CPU, 2 3x1-pin FAN for Chipset, and 3 for Chassis
1 x COM

Piezo-buzzer
24-pin ATX and 8-pin ATX power connectors
Standby LED, S3 LED
EZ-On and EZ-Touch switches for onboard power on and reset
10x2-pin front panel headers (IDE LED, Power LED,
Power switch, Reset button,PC speaker)
Software Debug LED
Accessories
LanParty LT X38-T2R User�s Manual, Quick Installation guide
BERNSTEIN Audio Module
1 Parallel IDE flat cable, 1 FDD flat cable
4 SATA cables with SATA power cable

Driver CD
1 Floppy diskette for SATA RAID ICH9R and JMicron 363 driver
LanParty LT X38-T2R I/O shield

Form Factor
ATX Motherboard Form FactorDimension: 305x245 mm, 6 Layers, PCB in Black
