ÜRÜN YURT DIŞIDIR TR DE SATIŞI YOKTUR
FİYATI 350 YTL
Dış mekan High power 600mW Wireless 1- 30 km iletişim mesafesi 10 dbi entegre antenle 5 km iletişim mesafesi (Bire bir görüşte), Poe,SuperG 108Mbps Support, harici antenle 30 km iletetişim mesafesi,dış mekan POE besleme üzerinde 60 derece açılı 10 dbi entegre anten 60 derece açılı anten ile sitelerde otellerde ve okullarda kullanmaya uygun

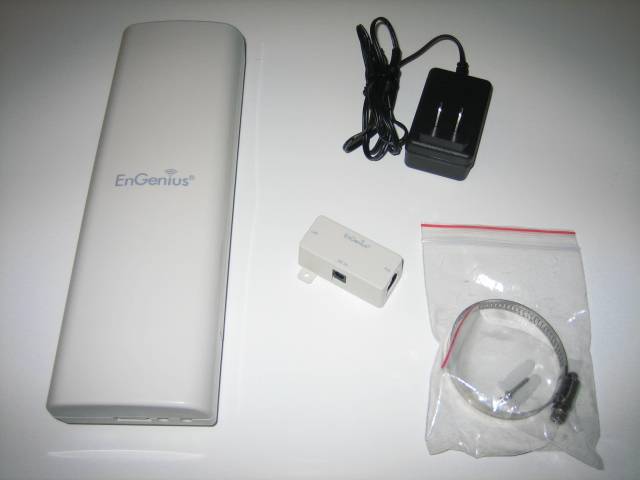

üründe 15mt cat5 kablo ve ac dönüştürücü uc bulunmaktadır
lütfen anlamayanlar almasın ürün profesyonel kullanım içindir.
denenmiştir çalışmaktadır tr de garantisi yoktur ürünün geri iadesi söz konusu değildir.
ürün yurt dışı olup tr deki muadilleri 1000 ytl den satılmaktadır saygılar.
ürün sıfır kutuludur.

www.wirelessmerkezi.com

SuperG 108Mbps Support

-
2.4GHz It works in 2.4GHz frequency spectrum
-
High output power Transmit output power programmable for different country selections
-
High Data Rate High speed physical transmitting rate up to 54Mbps with 11g, support large
payload such as MEPG video streaming
-
Multifunction application Access Point/Client Bridge/Client Router
-
Long range transmitting Transmit power control and distance control (ACK timeout)
-
Signal Strength LED indicators have the best transmit and receive signal for traffic
communication
-

Networking
-
Public wireless solution An AP interface that is especially useful in public areas such as
hotspots and enterprise
-
Signal Strength Display RF signal strength status shown LEDs of 3 colors, making network
build-up easier
-
QoS(WMM) Enhance performance and density (Phase 2)

Security
-
802.11i WEP, WPA, WPA2 (Encryption support TKIP/AES)
-
802.1x IEEE 802.1x Supplicant support in CB mode
-
MAC address functions MAC address filter (AP mode)
-
L2 isolation
-
Station isolation

Management
-
Firmware Upgrade Upgrading firmware via web browser, setting are reserved after upgrade
-
Reset & Backup Reset to factory default. User can export all setting into a file via WEB
-
MIB MIB I, MIB II(RFC1213)
-
SNMP V1, V2c

Technical Specifications

RF Specification
Frequency Band
802.11b/g
2.412~2.472GHz
Modulation Technology
OFDM = BPSK, QPSK, 16-QAM, 64-QAM
DSSS = DBPSK, DQPSK, CCK
Operating Channels
802.11b/g
11 for North America, 14 for Japan, 13 for Europe
Receive Sensitivity (Typical) 802.11g
802.11b
-92 dBm @ 6Mbps
-97 dBm @ 1Mbps
-74 dBm @ 54Mbp
-89 dBm @ 11Mbps
Available transmit power

(Average power)
FCC ETSI
Frequency Power Frequency Power
26dBm@6~24Mbps
26dBm@6~24Mbps
2.412~2.462
2.412~2.472
25dBm@36Mbps
25dBm@36Mbps
GHz
GHz
23dBm@48Mbps
23dBm@48Mbps
IEEE802.11g
IEEE802.11g
22dBm@54Mbps
22dBm@54Mbps
2.412~2.462
2.412~2.472
27dBm@1~11Mbps
27dBm@1~11Mbps
GHz
GHz

IEEE802.11b
IEEE802.11b
Tolerance
±1 dBm
Tolerance
±1 dBm

Internal Antenna
Embedded 10dBi Panel antenna
External Antenna
1* SMA connector

Software Features
General
Topology Infrastructure
Protocol / Standard
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.11b/g (2.4GHz WLAN)
Operation Mode
802.11 b/g
Access Point
Client Bridge
Client Router
LAN DHCP
Server
DHCP Client
VPN VPN

pass
through
Wireless
Channel Selection (Setting varies by countries)
Transmission Rate
11 b/g54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps
Long distance transmission : 1km to 30km
Transmit power table
Signal Strength indication using LEDs
Security WEP
Encryption-64/128/152
bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
802.1x Authenticator/supplicant
Hide SSID in beacons
802.1Q VLAN
L2 isolation(AP mode)
Wireless STA (Client) connected list
Web-redirect
QoS WMM
(Phase 2)
Management
Configuration Web-based
configuration
(HTTP)
Firmware Upgrade
- Upgrade firmware via web-browser
- Keep latest setting when f/w update
Administrator Setting
Administrator password change
Reset Setting
- Reboot (Press 1 second)
- Reset to Factory Default (Press 5 seconds)

System monitoring
Status, Event Log
SNMP V1,
V2c
(Phase 2)
MIB
MIB I, MIB II (RFC1213) and Private MIB (Phase 2)
Backup & Restore
Settings through Web
Time setting
NTP (Auto-setting of time)
Time setting manually

Environment & Mechanical

Temperature Range
Operating -20°C~70°C
Storage -30°C to 80°C
Humidity (non-condensing)
0%90% typical
Dimensions
260mm (L) x 84mm (W) x 55mm (H)
Weight 300g
